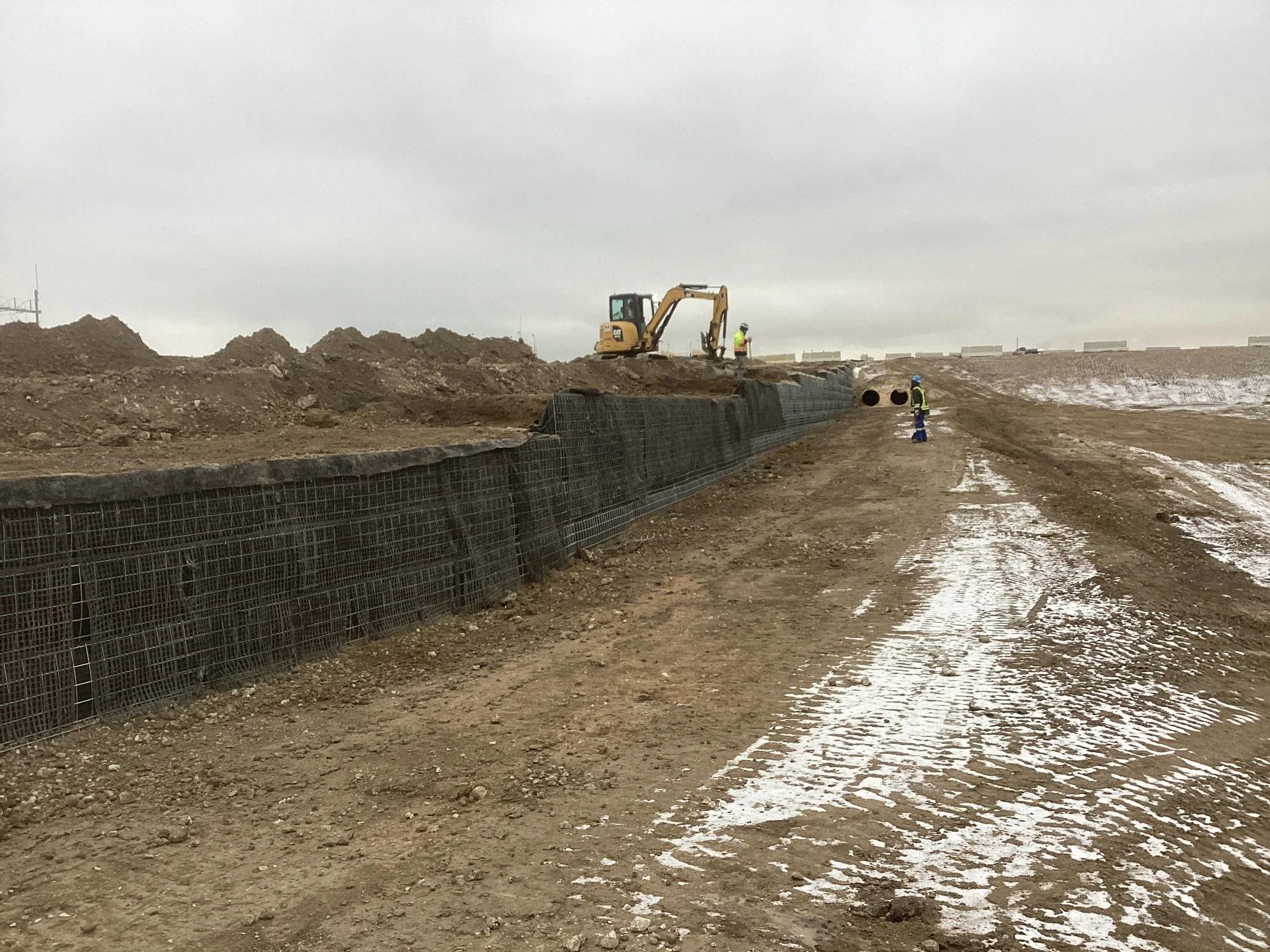

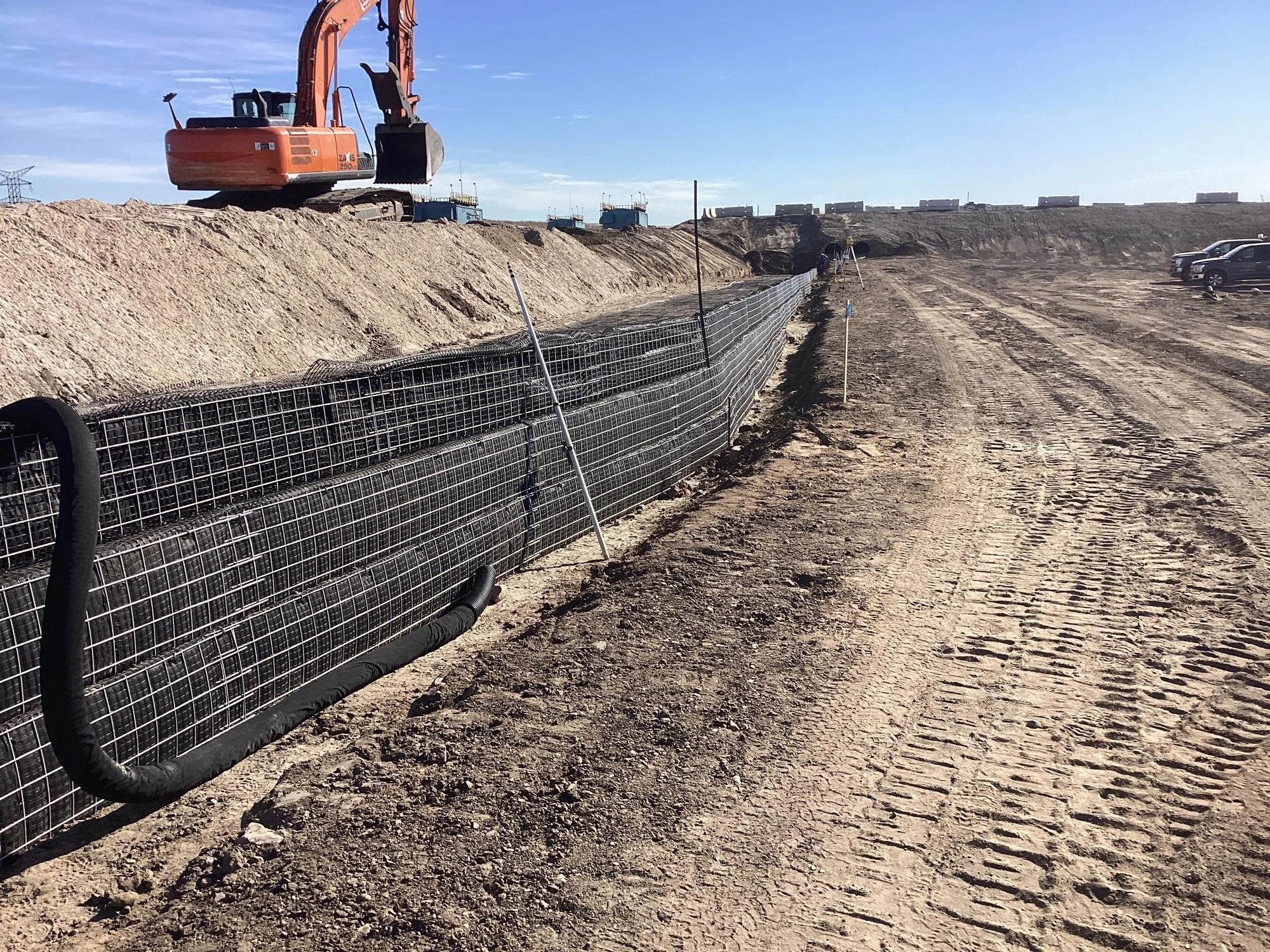

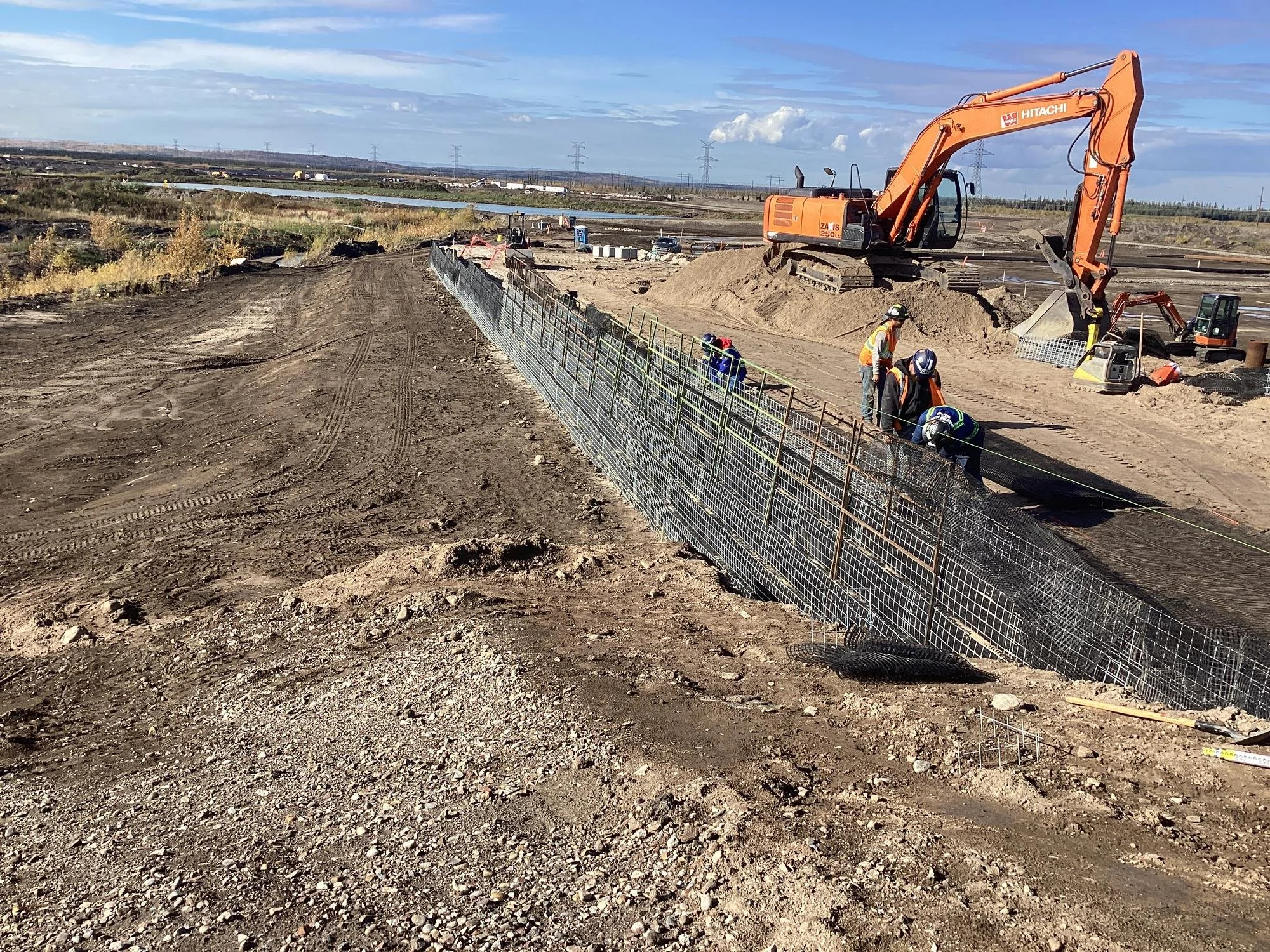

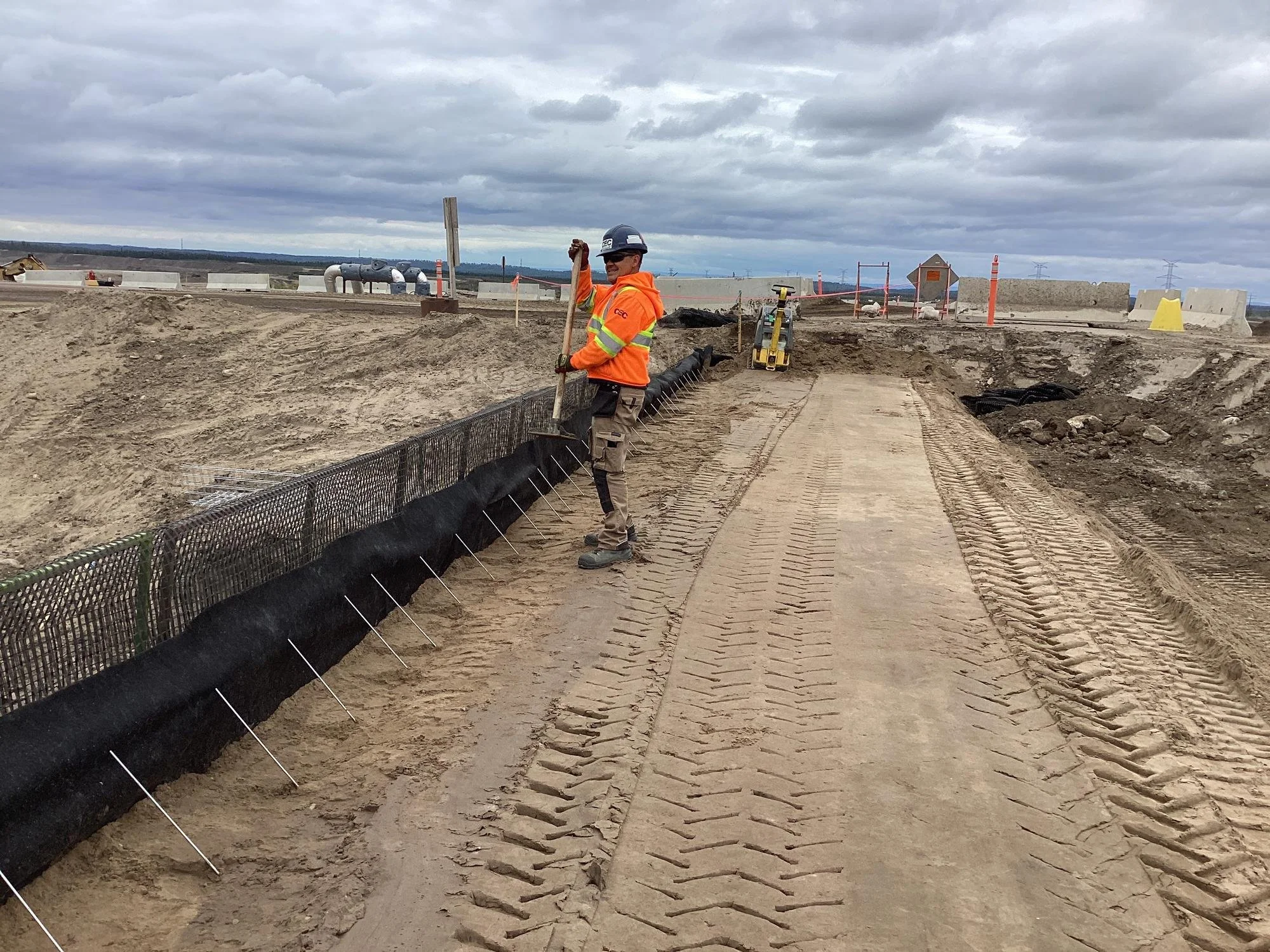

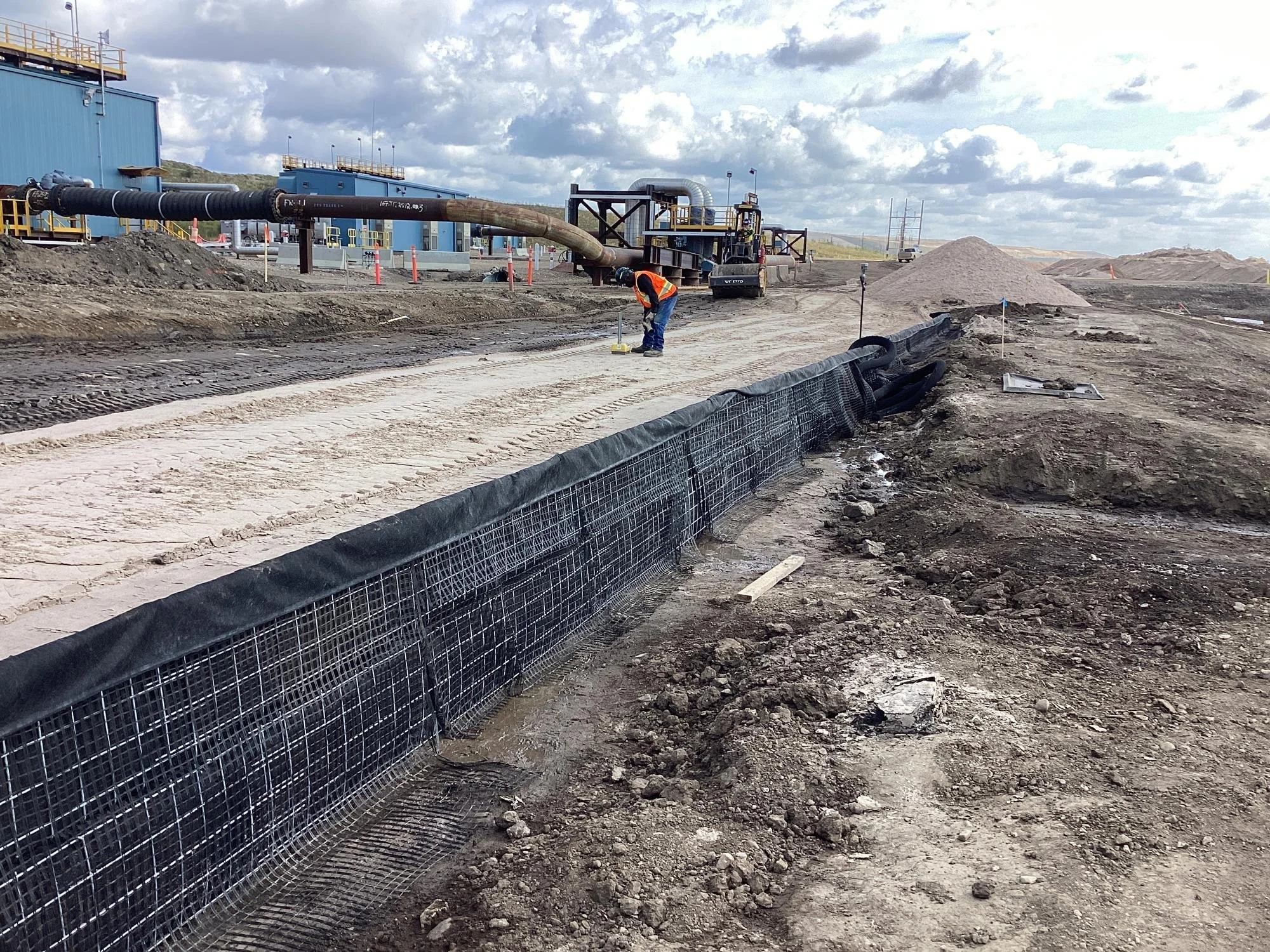

Project Overview: MSE Wall Installation

Our team successfully completed the installation of a Mechanically Stabilized Earth (MSE) wall system, delivering a robust and engineered solution tailored to project specifications. The scope included:

• Mobilization and Demobilization of the wall system.

• Retaining Wall Installation:

  • CWA08: 775 m² installed.

  • CWA10: 425 m³ installed.

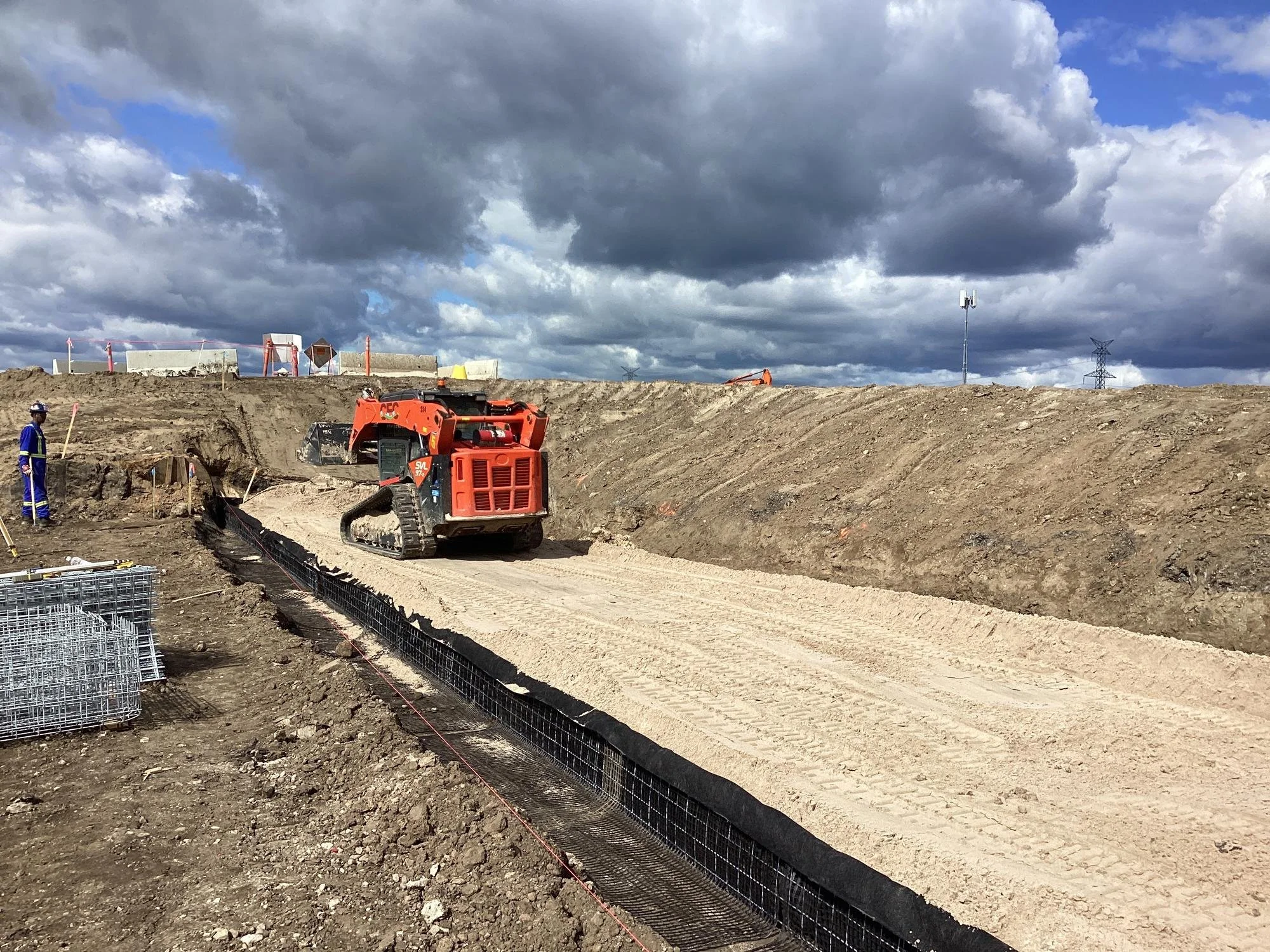

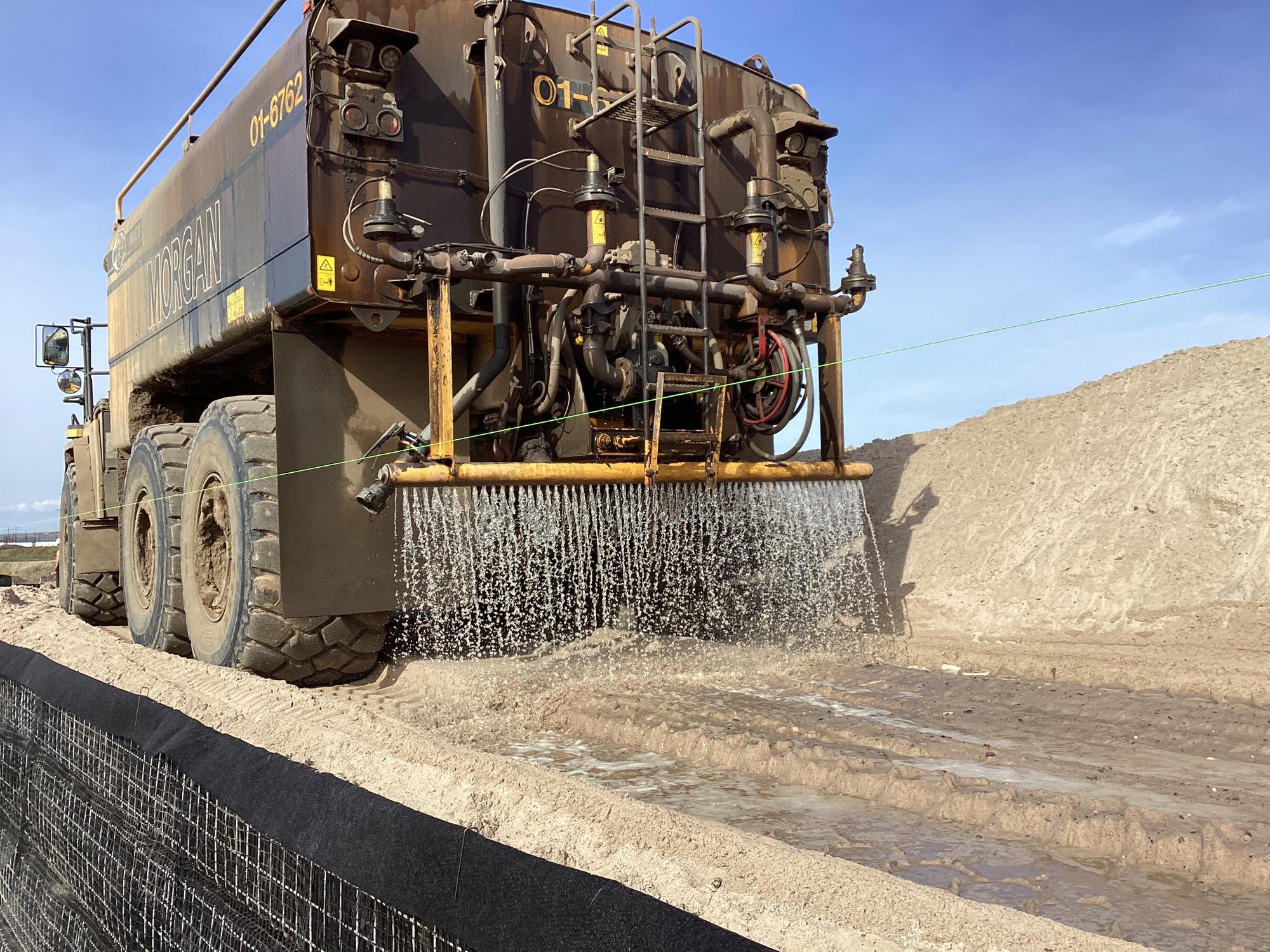

• Backfill Installation:

  • 100 m³ placed for structural integrity.

• Supply and Delivery:

  • 1,200 m² of MSE components, including:

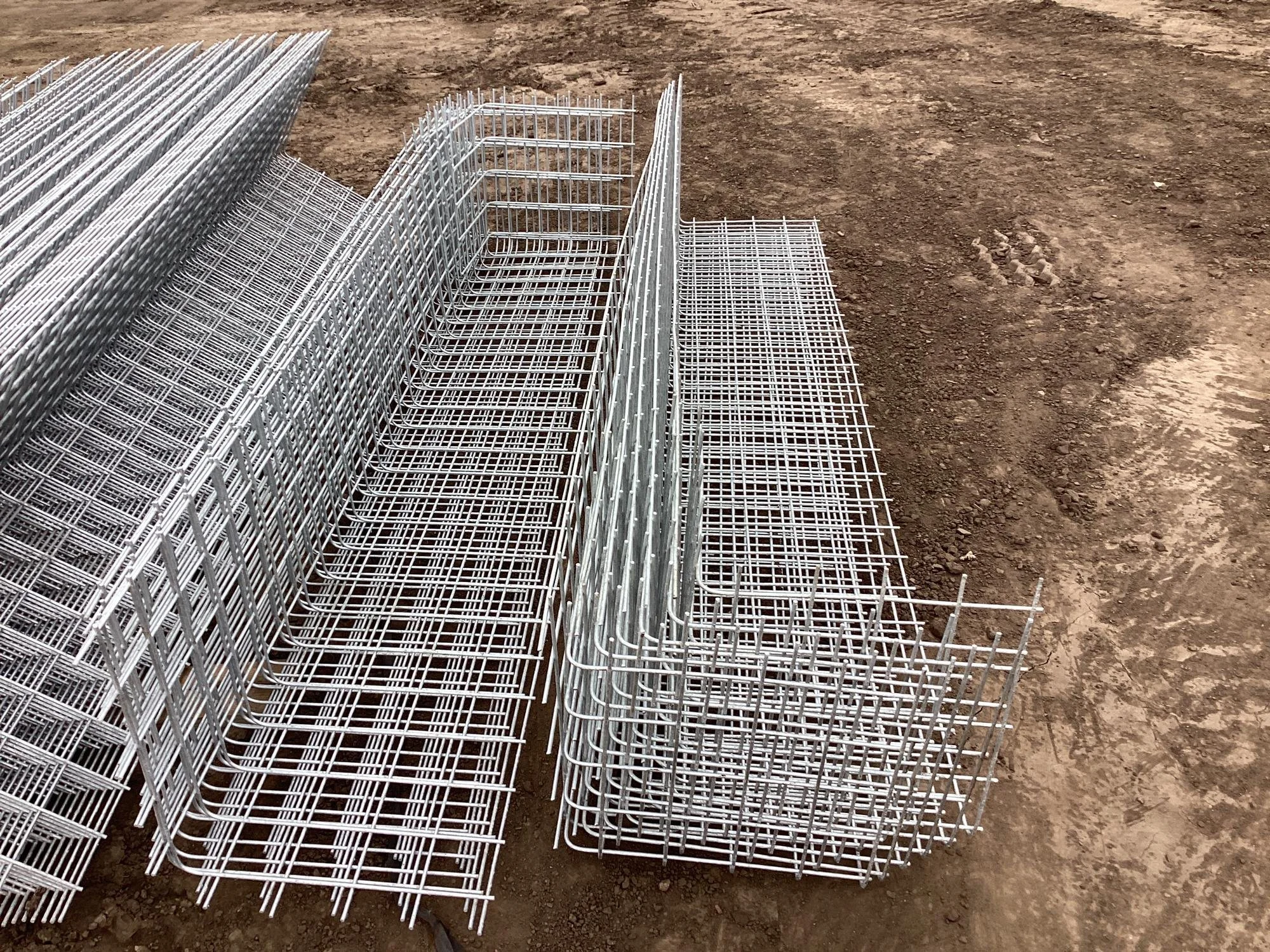

    • Tensar Galvanized WWF baskets with struts.

    • TPG geogrid reinforcement.

    • 8 oz woven geotextile.

• Engineering Support:

  • Stamped shop drawings provided to meet all contract specifications.
